[Feed size]: Smaller than the diameter of the metal shredder feed opening
[Discharge size]: 1cm-3cm metal ball
[Unit output]: 1-3 tons per hour
[Applicable materials]: All kinds of scrap iron and steel, iron scraps, scrap iron barrels, color steel tiles, household appliances, scrap bicycles, thin iron sheets, raw aluminum aluminum alloys, cans and other metal raw materials.
[Equipment composition]: Double-shaft shredder, metal crusher, eddy current separator, belt conveyor

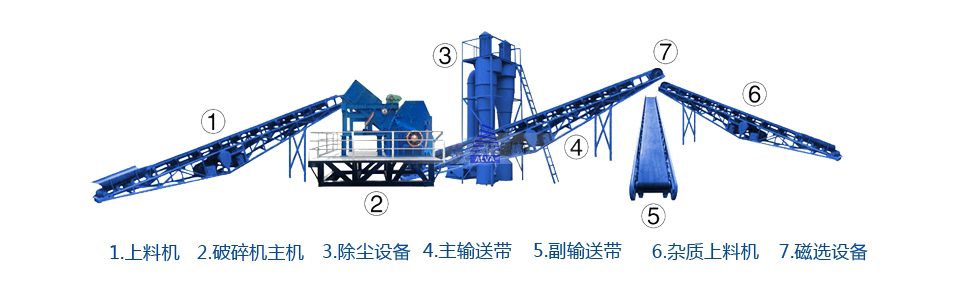

Production line composition
Equipment Solutions
The scrap steel crushing and sorting production line is mainly used to process various scrap car bodies, tinplate, light iron sheets, color steel tiles, oil drums, home appliances, bicycles and other scrap iron and steel materials. These metal materials are processed through coarse crushing, fine crushing, impurity removal, and sorting. Selection, ultimately turning the waste scraps into high-quality steel-making raw materials with good market applications and high sales prices. Compared with traditional mixed processing, the profits are more generous.
1. Scrap car body (excluding engine, reduction gearbox, tires, etc.). When the crushing line crushes the scrap car body, it must be broken down into squares of no more than 600 mmx600 mm.
2. Tinplate (cans, etc.)
3. Home appliances (excluding motors, compressors, shafts, etc.)
4. Bicycles, truck fences and similar household waste
5. Empty cans (wash to remove thinners, coatings, etc.)
6. Other scrap steel (such as baled blocks with a density not less than 0.65 tons/m)
7. Steel plates, steel sections, and steel structural parts with thickness ≤6 mm
Advantages of scrap steel production line processing materials:
1. Excellent: high density, good smoothness, few impurities
2. Poor: many impurities, paint adhesion, high smelting cost
3. Poor: low density, many impurities, paint adhesion, high transportation cost
Scrap steel production line workflow:
Production line process: Production line process: Feeding conveyor (chain plate conveyor optional) double-shaft shredder → scrap steel crusher – discharging conveyor – magnetic separator – eddy current separator – discharging conveyor → dust collector
Metal crushers often appear on the market in the form of a single machine or a production line. The main machine of the metal crusher mainly consists of a rotor system, a feeding device, a discharge device, a main transmission device, a dust removal device, a main engine casing and a lining. The metal crusher production line is composed of a feeding conveyor, a crusher host, a discharging conveyor, a magnetic separator, a dust collector, an eddy current separator, etc.
The crushed materials crushed from the metal crusher pass through the belt conveyor and magnetic sorting system to separate the metallic iron from other metals, and are transported and piled by their respective conveyors. Non-ferrous metals and non-metallic objects will be affected again on the conveyor. The sorting of eddy current magnetic separation equipment can sort out metal materials and improve the recovery of metal materials. At the same time, non-ferrous metals can also be manually selected to reduce equipment investment.
